Precision wire-cut profiles for hardened metals and tooling components Stable quality control for prototype and low-volume Manufacturing Service Engineering response within 10 hours for urgent project reviews
All file uploads are fully secured and kept strictly confidential.

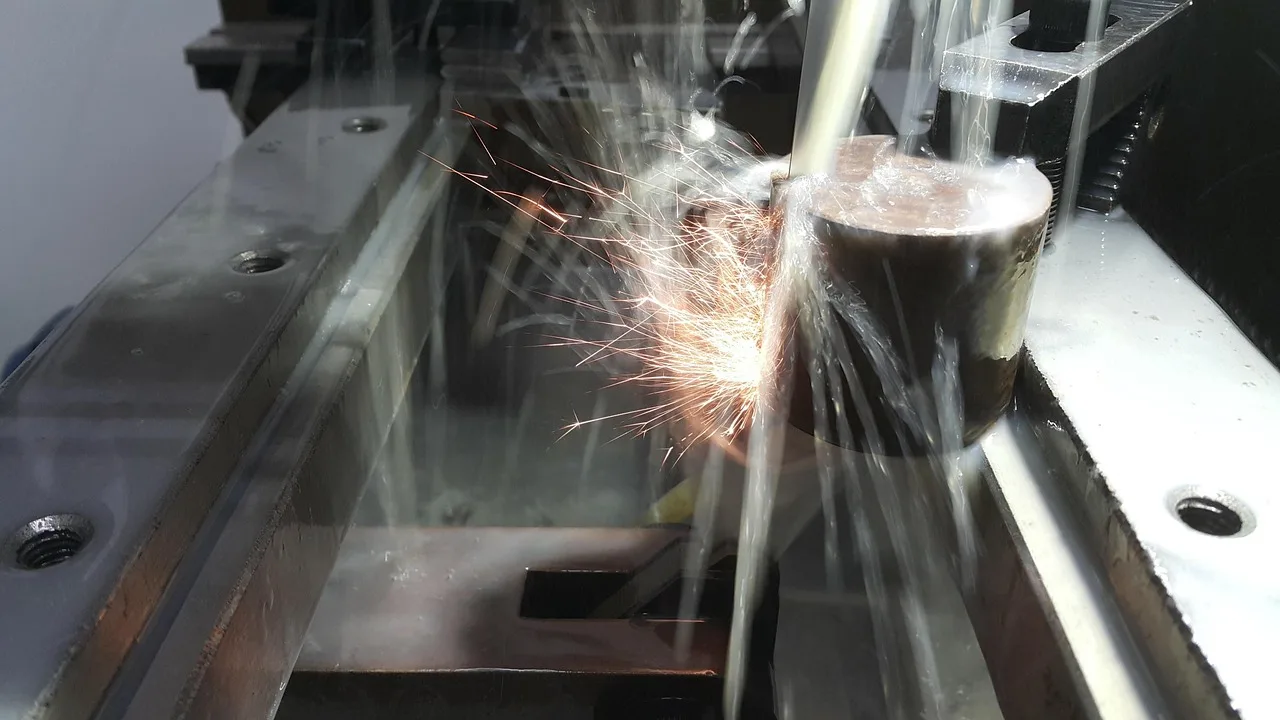

At ZigiTech, our Wire Electrical Discharge Machining (EDM) capability supports high-accuracy components for industrial programs that demand consistent performance. By controlling spark discharge between a wire electrode and conductive material in dielectric fluid, we create intricate geometries with clean edges and dependable dimensional control.
Wire EDM is especially effective for complex contours, narrow slots, and micro features in difficult materials such as heat-treated steels and superalloys. As a Machining Manufacturer focused on practical manufacturability, we help teams choose process windows that reduce risk while preserving precision.
From aerospace and automotive fixtures to mold and die inserts, our team delivers repeatable wire EDM results backed by process discipline and inspection planning. If you need a responsive Metal Processing Company for precision parts, ZigiTech provides efficient support from prototype through production handoff.
Get QuoteThe first step is to clamp the workpiece securely on the EDM table and clean the surface to remove oil or contaminants. Because wire EDM relies on electrical discharge, the selected stock must be conductive to ensure stable cutting behavior.
A thin wire is fed through precision guides while both the wire and part remain in dielectric fluid. Voltage is then applied to create controlled spark erosion between wire and workpiece, enabling accurate material removal with minimal mechanical stress.
The CNC system controls the wire trajectory to produce complex profiles, narrow slots, and detailed features. During cutting, fluid circulation clears debris and regulates temperature so the final component meets Machining Manufacturer quality expectations.
Upload the model to kick off a fast technical review.
See immediate cost guidance plus practical feedback for efficient production.
Sign off on the final requirements before machining or molding begins.
Finished parts move from production control to outbound shipment.
| Small Parts (mm) | Medium Parts (mm) | Large Parts (mm) | |
|---|---|---|---|
| Maximum Length | 50 | 100 | 500 |
| Maximum Width | 30 | 70 | 300 |
| Maximum Height | 10 | 40 | 150 |
| Minimum Thickness | 0.5 | 1.0 | 5.0 |
| Tolerance | +/-0.005 | +/-0.01 | +/-0.03 |

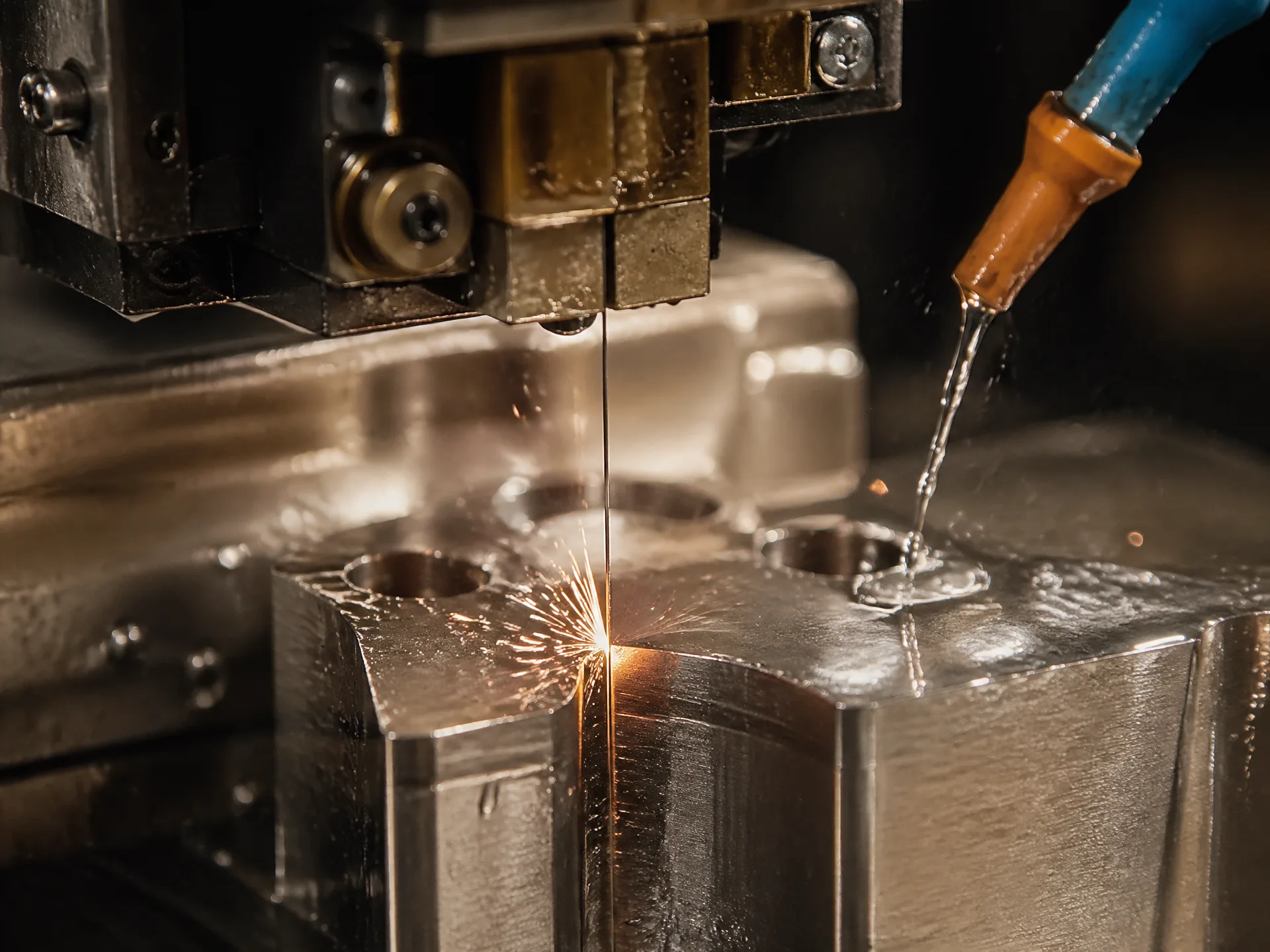

Wire EDM machining supports adaptable, high-precision outcomes across industries where geometry complexity and tolerance control are critical.
The three common EDM process types are:
Yes. Wire EDM is well suited for hard conductive materials such as hardened tool steel, titanium, tungsten carbide, and many superalloys. Because the process removes material through controlled electrical discharge rather than direct cutting force, it helps reduce deformation risk while maintaining precision.
Wire EDM can achieve very tight tolerances for qualified features, often around +/-0.0001 inches (+/-2.5 microns). Actual capability depends on geometry, material behavior, thickness, and inspection requirements.
Wire EDM can produce intricate 2D profiles and complex contours, including sharp internal corners, narrow slots, small holes, and detailed patterns that are difficult for many conventional machining routes.
Yes. Depending on machine setup and process planning, wire EDM can cut thick conductive stock, commonly up to around 300 mm in suitable applications, while still maintaining strong dimensional consistency.
We ordered aluminum manifolds for a pilot build and were watching the sealing surfaces closely. The parts arrived well packed and checked out cleanly during our incoming inspection.
What stood out was that the quote review connected design choices to production reality. Our team got clear notes on wall thickness, access, and finish instead of vague suggestions.
For a control cabinet program, the hardware insertion and bend details matched the released drawing set without surprises. That saved rework on our assembly side.
We asked for a tooling review before final approval and got specific comments on shutoffs and cosmetic risk. It felt like feedback from people who actually build these parts.
The turned shaft parts were consistent from sample to sample, which mattered because we were checking fit against bearings and seals. That repeatability is hard to fake.
We had one material question mid-order and got a straightforward answer with options, not a delayed sales response. That helped us keep our internal approvals moving.
The prototype covers looked good enough for customer demos but still gave us usable fit information. That balance was exactly what we needed at that stage.
Across a mixed order of parts and jigs, revision control stayed clear all the way through. That made our own internal tracking much easier when the shipment landed.
